Application XML Upload

Defining Epic SER as a Target application is the first item to be configured to start utilizing Identity Bridge capabilities.

Follow below steps to upload Application XML which defines the target system in Identity Bridge

• Login to Identity Bridge.

• Go to Configuration Hub.

• Go to Configure Source.

• Go to Un-Deployed Sources tab.

• Click on “Add New System”.

• Click on “Upload System File” button. This will open a pop-up window. Choose the EPIC SER application XML file and click on upload.

• As the application gets uploaded, it will redirect the user to the main screen of Configure source.

• Go to Un-Deployed Sources tab again. The uploaded application should be present here.

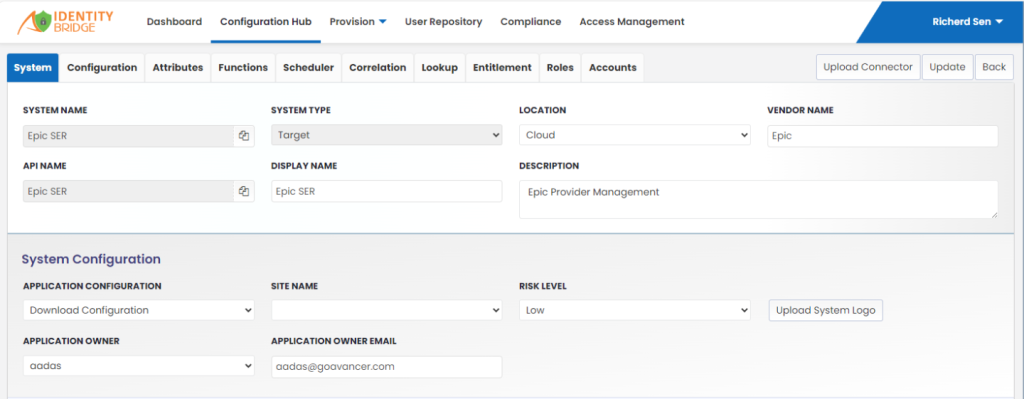

• Now click on the edit option on the application tile. This will open a new window with application details.

• Provide the connection details and update the other details as required. (Please refer to connection parameters section).

• Click on “Update” button to save the details.

• Next, click on “Upload Connector” and upload the connector xml.

• To verify the connector upload, refresh the page and go to configuration at the bottom section where connector details should be visible.

• User can perform the “Test Connection” once the Connector and Connection details are saved.

• Once the application configuration is updated successfully, go to Un-Deployed Sources tab and click the “Deploy” option on the application tile.

Once the application is deployed, the user will be able to perform other operations on the application.
